16-ch 1U 16 POE AcuSense 4K NVR — image 1

DS-7616NXI-I2-16P-S · Hikvision

NVR 4K AcuSense 16 POE 1U a 16 canali

Formati video H.265+/H.265/H.264+/H.264
Analisi intelligente basata su algoritmo di deep learning
Fino a 4 canali di protezione perimetrale
Fino a 4 canali di riconoscimento facciale per flusso video
Fino a 8 canali di riconoscimento facciale per immagine
Fino a 16 ingressi per telecamere IP
Fino a 32 canali di capacità di decodifica 1080p
Possibilità di collegare fino a 8 altoparlanti IP

0,00 €

IVA inclusa · Spedizione calcolata al checkout

Esaurito· Spedito da Milano in 1-2 giorni

Spedizione UE gratuita sopra €100

Garanzia 24 mesi inclusa

Reso gratuito entro 30 giorni

Formati video H.265+/H.265/H.264+/H.264
Analisi intelligente basata su algoritmo di deep learning
Fino a 4 canali di protezione perimetrale
Fino a 4 canali di riconoscimento facciale per flusso video
Fino a 8 canali di riconoscimento facciale per immagine
Fino a 16 ingressi per telecamere IP
Fino a 32 canali di capacità di decodifica 1080p
Possibilità di collegare fino a 8 altoparlanti IP

Ogni unità è testata sul banco prima della spedizione: alimentazione PoE, qualità immagine, integrità dello chassis, conformità IP. Forniamo manuali in italiano e inglese, supporto telefonico in orario d’ufficio e supporto remoto su appuntamento.

Compatibile con i principali sistemi VMS (Milestone, Genetec, Hikvision iVMS).
Conforme NDAA per installazioni in enti pubblici.
Aggiornamento firmware OTA gratuito per 5 anni.

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Intelligent Analytics

AI by NVR: Facial recognition, perimeter protection, motion detection 2.0
AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine: 1, engine mode is adjustable
AI by NVR: Facial recognition, perimeter protection, motion detection 2.0
AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine: 1, engine mode is adjustable

Perimeter Protection

Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By NVR: 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total
By Camera: All channels
By Camera: All channels
Human/Vehicle Analysis: N/A
By NVR: 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total

Facial Recognition

Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison: 4-ch face picture comparison alarm
Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison: 8-ch
Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

Motion Detection 2.0

Human/Vehicle Analysis: 16-ch
By NVR: All channels for Hikvision cameras
By Camera: All channels
By Camera: All channels
Human/Vehicle Analysis: N/A
By NVR: All channels for Hikvision cameras

ANPR

By Camera: All channels
Support Countries & Regions:
1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia
2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, The United Kingdom, Ireland, Germany, Italy, Austria, Palestine, Latvia, Lithuania, Estonia, Belgium, Luxembourg, Ukraine, Uzbekistan, Kazakhstan, Mongolia, Moldova, Kyrgyzstan, Azerbaijan, Georgia, Armenia, Albania, Kosovo, Belarus, Cyprus, Denmark, Finland, Malta, Portugal, Romania, Slovenia, Sweden, Israel, Bosnia and Herzegovina, Turkmenistan, Montenegro, Serbia, Tajikistan, Iceland, Liechtenstein
3. Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Salvador, Bolivia,
Canada, Algeria, Mexico, Panama, Costa Rica, Nigeria, Kenya, Mauritius, Tanzania, Cote d'Ivoire, South Africa, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Republic of Trinidad and Tobago, Dominica, Guatemala, Senegal, Algeria, Cameroon
4. Qatar, Kuwait, Oman, Jordan, Lebanon, Iraq, United Arab Emirates, Saudi Arabia, Bahrain, Egypt, Libya
Vehicle Attributes: Vehicle brand, vehicle color, vehicle type
Plate Attributes: Plate number, license plate color, license plate type
By Camera: All channels
Vehicle Attributes: Plate number, license plate color, license plate type
Plate Attributes: Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input: 16
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 256 Mbps
HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
IP Video Input: 16-ch
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 256 Mbps
HDMI Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
VGA Output: 1920 × 1080/60 Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format: H.265,H.265+,H.264,H.264+,MPEG4
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 16-ch
Live View Window Division: 1/4/6/8/9/16
Aux Port Window Division: 1/4/6/8/9/16
Decoding Capability: 16-ch @ 1080p (30 fps)
Audio Compression: G.711ulaw,G.711alaw,G.722,G.726,MP2L2
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio
Decoding Format: H.265+/H.265/H.264+/H.264
Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
Synchronous playback: 16-ch
Live View Window Division: 1/2/4/6/8/9/16
Aux Port Window Division: 1/2/4/6/8/9/16
Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio

Network

Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
API: ONVIF (profile S/G); SDK; ISAPI
Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access Protocol: ONVIF(Version 2.5), RTSP
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
API: ONVIF (profile S/G); SDK; ISAPI
Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access Protocol: ONVIF(Version 2.5), RTSP

PoE

Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 200W
Standard: IEEE 802.3 af/at
Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 200W
Standard: IEEE 802.3 af/at

Auxiliary Interface

SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each disk
Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
Alarm In/Out: 4/1
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
SATA: 2 SATA interfaces
Capacity: Up to 14 TB capacity for each disk
Serial Interface: N/A
Alarm In/Out: 4/1
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
Power Supply: ≤ 280 W
Consumption: ≤ 15W
Working Temperature: -10℃～＋55℃
Working Humidity: 10% to 90%
Chassis: 1U

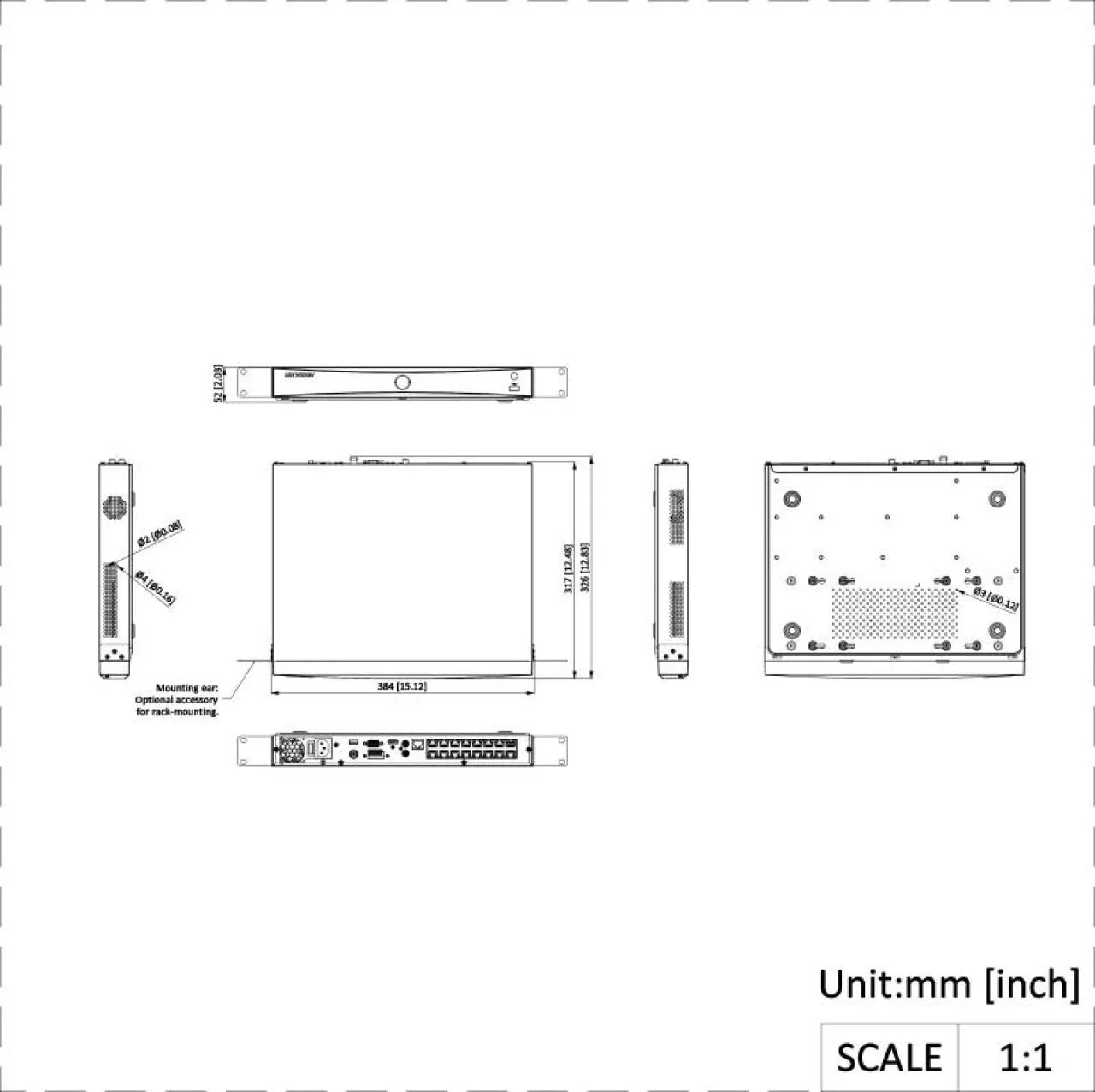

Dimension (W × D × H): 385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6")
GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
Power Supply: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 30 W (without HDD and PoE off)
Working Temperature: -10° C to 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Chassis: 1U chassis
Dimension (W × D × H): 385 × 317 × 52 mm ( 15.2"× 12.5" × 2.0")

Certification

Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Generale

SKU: DS-7616NXI-I2-16P-S
Marchio: Hikvision

Documenti Tecnici

Scarica la documentazione ufficiale per installazione, configurazione e consultazione.
