4 MP AcuSense Built-in Mic Fixed Cube Network Camera · GSS Forniture

HomeNegozioTelecamere di SicurezzaTelecamera di rete fissa cube 4 MP AcuSense con microfono integrato

4 MP AcuSense Built-in Mic Fixed Cube Network Camera — image 1

DS-2CD2443G2-IW · Hikvision

Telecamera di rete fissa cube 4 MP AcuSense con microfono integrato

Immagini di alta qualità con risoluzione 4 MP
Immagini nitide in controluce intenso grazie alla tecnologia WDR 120 dB
Tecnologia di compressione H.265+ efficiente
Classificazione di persone e veicoli basata sul deep learning
Sicurezza in tempo reale tramite audio bidirezionale integrato
Rilevamento del corpo umano tramite infrarossi passivi sensibili alla temperatura corporea (PIR)

0,00 €

IVA inclusa · Spedizione calcolata al checkout

Esaurito· Spedito da Milano in 1-2 giorni

Spedizione UE gratuita sopra €100

Garanzia 24 mesi inclusa

Reso gratuito entro 30 giorni

Immagini di alta qualità con risoluzione 4 MP
Immagini nitide in controluce intenso grazie alla tecnologia WDR 120 dB
Tecnologia di compressione H.265+ efficiente
Classificazione di persone e veicoli basata sul deep learning
Sicurezza in tempo reale tramite audio bidirezionale integrato
Rilevamento del corpo umano tramite infrarossi passivi sensibili alla temperatura corporea (PIR)

Ogni unità è testata sul banco prima della spedizione: alimentazione PoE, qualità immagine, integrità dello chassis, conformità IP. Forniamo manuali in italiano e inglese, supporto telefonico in orario d’ufficio e supporto remoto su appuntamento.

Compatibile con i principali sistemi VMS (Milestone, Genetec, Hikvision iVMS).
Conforme NDAA per installazioni in enti pubblici.
Aggiornamento firmware OTA gratuito per 5 anni.

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Camera

Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: 2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length & FOV: 2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°
2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
Aperture: 2 mm: F2.0
2.8 mm: F1.6
4 mm: F1.6
Lens Mount: M12

DORI

DORI: 2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m
2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m
4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 10 m
IR Wavelength: 850 nm
Smart Supplement Light: Yes

Video

Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): Yes
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Wide Dynamic Range (WDR): 120 dB
Privacy Mask: 4 programmable polygon privacy masks
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Transducer

Detection Angle: Horizontal: 90°, vertical: 80°
Transducer Type: PIR
Detection Range: Up to 8 m

Interface

Built-in Microphone: Yes
Built-in Speaker: Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event: Face detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function

Perimeter Protection: Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)

General

Power: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Material: Plastic

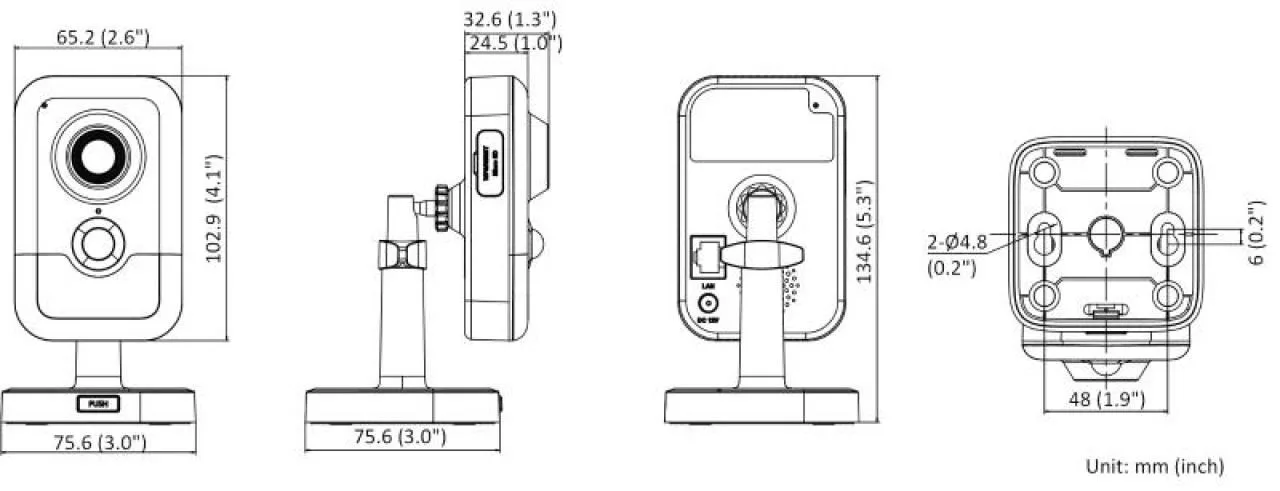

Dimension: 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1")
2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
With Package Weight: Approx. 430 g (0.9 lb.)

Approval

EMC: FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017)
Environment: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Generale

SKU: DS-2CD2443G2-IW
Marchio: Hikvision

Documenti Tecnici

Scarica la documentazione ufficiale per installazione, configurazione e consultazione.
