4 K ColorVu Fixed Bullet Network Camera · GSS Forniture

HomeNegozioTelecamere di SicurezzaTelecamera di rete bullet fissa 4K ColorVu

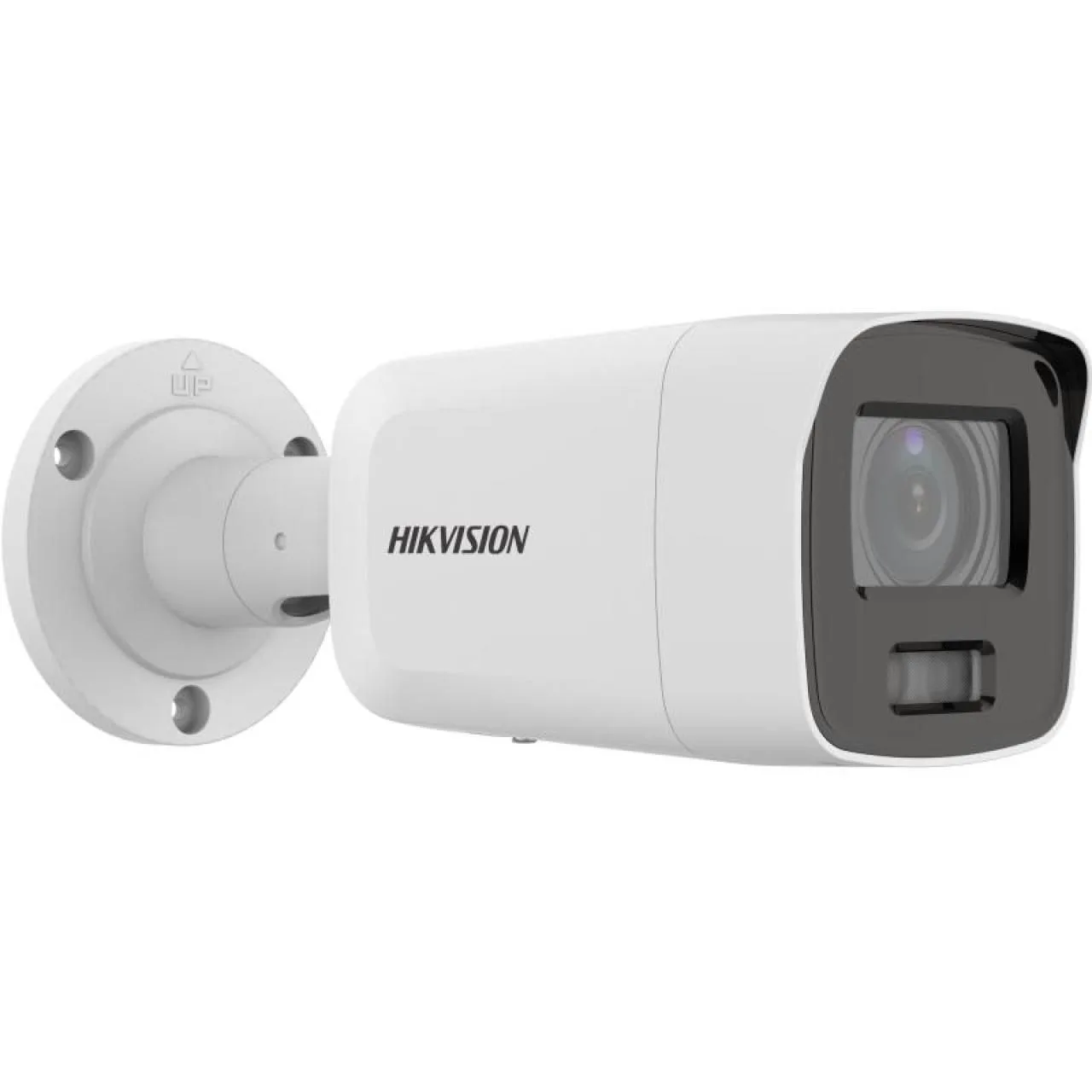

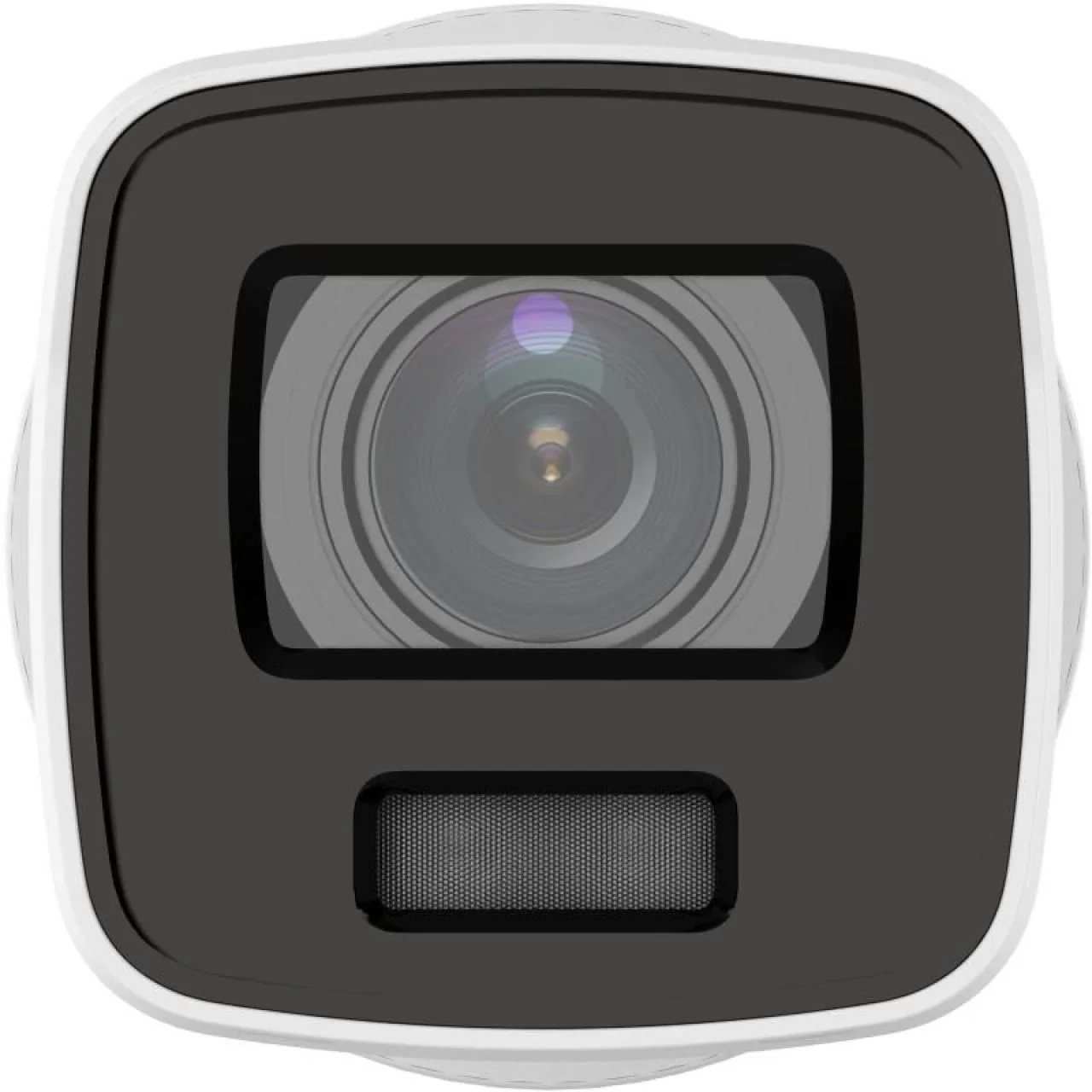

4 K ColorVu Fixed Bullet Network Camera — image 1

DS-2CD2087G2-LU · Hikvision

Telecamera di rete bullet fissa 4K ColorVu

Immagini di alta qualità con risoluzione 8 MP
Tecnologia di compressione H.265+ efficiente
Immagini nitide in controluce grazie alla tecnologia WDR 130 dB
Classificazione di persone e veicoli basata sul deep learning
Immagini a colori 24/7
Microfono integrato per la sicurezza audio in tempo reale (-U)

0,00 €

IVA inclusa · Spedizione calcolata al checkout

Esaurito· Spedito da Milano in 1-2 giorni

Spedizione UE gratuita sopra €100

Garanzia 24 mesi inclusa

Reso gratuito entro 30 giorni

Immagini di alta qualità con risoluzione 8 MP
Tecnologia di compressione H.265+ efficiente
Immagini nitide in controluce grazie alla tecnologia WDR 130 dB
Classificazione di persone e veicoli basata sul deep learning
Immagini a colori 24/7
Microfono integrato per la sicurezza audio in tempo reale (-U)

Ogni unità è testata sul banco prima della spedizione: alimentazione PoE, qualità immagine, integrità dello chassis, conformità IP. Forniamo manuali in italiano e inglese, supporto telefonico in orario d’ufficio e supporto remoto su appuntamento.

Compatibile con i principali sistemi VMS (Milestone, Genetec, Hikvision iVMS).
Conforme NDAA per installazioni in enti pubblici.
Aggiornamento firmware OTA gratuito per 5 anni.

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Fotocamera

Sensore d'immagine: 1/1.2" Progressive Scan CMOS
Risoluzione massima: 3840 × 2160
Illuminazione minima: Colore: 0,0005 Lux @ (F1.0, AGC ON), 0 Lux con luce
Tempo di otturazione: da 1/3 s a 1/100.000 s
Regolazione angolare: Panoramica: da 0° a 360°, inclinazione: da 0° a 90°, rotazione: da 0° a 360°

Ottica

Tipo di obiettivo: Obiettivo a focale fissa, 2,8, 4 e 6 mm opzionali
Lunghezza focale e FOV: 2,8 mm: FOV orizzontale 102°, FOV verticale 52°, FOV diagonale 124°
4 mm: FOV orizzontale 88°, FOV verticale 47°, FOV diagonale 104°
6 mm: FOV orizzontale 54°, FOV verticale 30°, FOV diagonale 62°
Tipo di diaframma: Fisso
Apertura: F1.0
Profondità di campo: 2,8 mm: da 4,5 m a ∞
4 mm: da 7 m a ∞
6 mm: da 13 m a ∞

DORI

DORI: 2,8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
DORI: 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
DORI: 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
DORI: 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m
4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminatore

Tipo di luce supplementare: Luce bianca
Portata della luce supplementare: 40 m
Luce supplementare intelligente: Sì

Video

Flusso principale: 50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Flusso secondario: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Terzo flusso: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Compressione video: Flusso principale: H.265/H.264/H.264+/H.265+
Flusso secondario: H.265/H.264/MJPEG
Terzo flusso: H.265/H.264
Bit rate video: da 32 Kbps a 16 Mbps
Tipo H.264: Baseline Profile/Main Profile/High Profile
Tipo H.265: Main Profile
Controllo bit rate: CBR/VBR
Codifica video scalabile (SVC): codifica H.264 e H.265
Regione di interesse (ROI): 1 regione fissa per il flusso principale e il flusso secondario
Main Stream: 50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Main Stream: 50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Main Stream: 50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

Compressione audio: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Bit rate audio: -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/da 32 a 192 Kbps (MP2L2)/da 8 a 320 Kbps (MP3)/da 16 a 64 Kbps (AAC)
Frequenza di campionamento audio: -U: 8 kHz/16 kHz/32 kHz/44,1 kHz/48 kHz
Filtraggio del rumore ambientale: -U: Sì
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate: -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Rete

Protocolli: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Visualizzazione in tempo reale simultanea: Fino a 6 canali
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Utenti/Host: Fino a 32 utenti. 3 livelli utente: amministratore, operatore e utente
Sicurezza: Protezione tramite password, password complessa, crittografia HTTPS, filtro indirizzi IP, registro di controllo della sicurezza, autenticazione basic e digest per HTTP/HTTPS, TLS 1.1/1.2, autenticazione WSSE e digest per Open Network Video Interface
Archiviazione di rete: NAS (NFS, SMB/CIFS), ripristino automatico di rete (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Browser web: Visualizzazione in tempo reale con plug-in: IE 10, IE 11
Visualizzazione in tempo reale senza plug-in: Chrome 57.0+, Firefox 52.0+
Servizio locale: Chrome 57.0+, Firefox 52.0+

Immagine

Commutazione parametri immagine: Sì
Impostazioni immagine: Rotazione, specchio, maschera privacy, saturazione, luminosità, contrasto, nitidezza, guadagno, bilanciamento del bianco regolabili tramite software client o browser web
Commutazione giorno/notte: Giorno, Notte, Auto, Programmazione
Gamma dinamica ampia (WDR): 130 dB
SNR: ≥ 52 dB
Miglioramento immagine: BLC, HLC, 3D DNR

Interfaccia

Interfaccia Ethernet: 1 porta Ethernet RJ45 10 M/100 M adattiva
Memoria integrata: Slot per scheda di memoria integrato, supporta schede microSD/microSDHC/microSDXC/TF, fino a 256 GB
Microfono integrato: -U: Sì
Tasto di reset: Sì

Evento

Evento base: Rilevamento del movimento (classificazione bersagli umani e veicoli), allarme di manomissione video, eccezione (rete disconnessa, conflitto di indirizzi IP, accesso non autorizzato, HDD pieno, errore HDD)
Evento intelligente: Attraversamento linea, intrusione, ingresso in regione, uscita da regione (supporta l'attivazione dell'allarme per tipi di bersaglio specificati (umani e veicoli))
Rilevamento cambio scena
Collegamento: Caricamento su FTP/scheda di memoria/NAS, notifica al centro di sorveglianza, avvio registrazione, avvio acquisizione, invio e-mail

Funzione di deep learning

Cattura volti: Sì

Generale

Alimentazione: 12 VDC ± 25%, 0,5 A, max. 6 W, spina di alimentazione coassiale Ø5,5 mm, protezione da inversione di polarità
PoE: (802.3af, Class 3, da 36 V a 57 V), da 0,25 A a 0,15 A, max. 7,5 W
Dimensioni: 78,8 × 78,6 × 215,2 mm (3,1" × 3,1" × 8,5")
Dimensioni imballo: 315 × 137 × 141 mm (12,4" × 5,4" × 5,6")
Peso con imballo: Circa 1270 g (2,8 lb.)
Condizioni di stoccaggio: da -30 °C a 60 °C (da -22 °F a 140 °F). Umidità pari o inferiore al 95% (senza condensa)
Condizioni di avvio e funzionamento: da -30 °C a 60 °C (da -22 °F a 140 °F). Umidità pari o inferiore al 95% (senza condensa)
Lingua: 33 lingue
Inglese, russo, estone, bulgaro, ungherese, greco, tedesco, italiano, ceco, slovacco, francese, polacco, olandese, portoghese, spagnolo, rumeno, danese, svedese, norvegese, finlandese, croato, sloveno, serbo, turco, coreano, cinese tradizionale, tailandese, vietnamita, giapponese, lettone, lituano, portoghese (Brasile), ucraino
Funzioni generali: Anti-sfarfallio, heartbeat, reimpostazione password via e-mail, contatore pixel
SKU: DS-2CD2087G2-LU
Marchio: Hikvision

Certificazioni

EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
Sicurezza: UL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
Ambiente: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protezione: IP67 (IEC 60529-2013)

Camera

Image Sensor: 1/1.2" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Image Sensor: 1/1.2" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Image Sensor: 1/1.2" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°
4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞

Illuminator

Supplement Light Type: White light
Supplement Light Range: 40 m
Smart Supplement Light: Yes
Supplement Light Type: White light
Supplement Light Range: 40 m
Smart Supplement Light: Yes
Supplement Light Type: White light
Supplement Light Range: 40 m
Smart Supplement Light: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in Microphone: -U: Yes
Reset Key: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in Microphone: -U: Yes
Reset Key: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

Face Capture: Yes
Face Capture: Yes
Face Capture: Yes

General

Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Dimension: 78.8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")
Package Dimension: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
With Package Weight: Approx. 1270 g (2.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Dimension: 78.8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")
Package Dimension: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
With Package Weight: Approx. 1270 g (2.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Dimension: 78.8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")
Package Dimension: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
With Package Weight: Approx. 1270 g (2.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval

EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
Safety: UL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
Environment: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
Safety: UL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
Environment: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
Safety: UL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
Environment: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)

Documenti Tecnici

Scarica la documentazione ufficiale per installazione, configurazione e consultazione.
