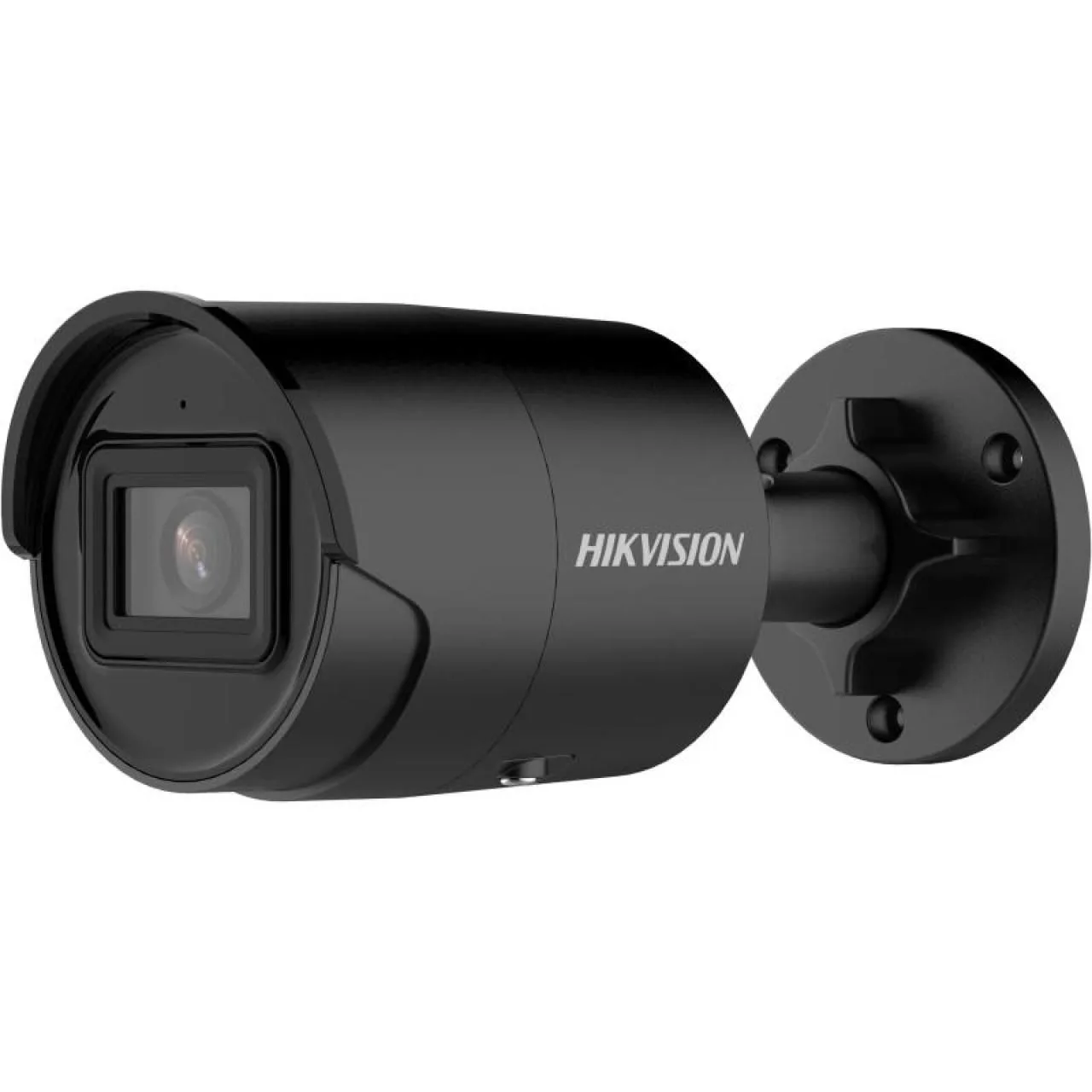

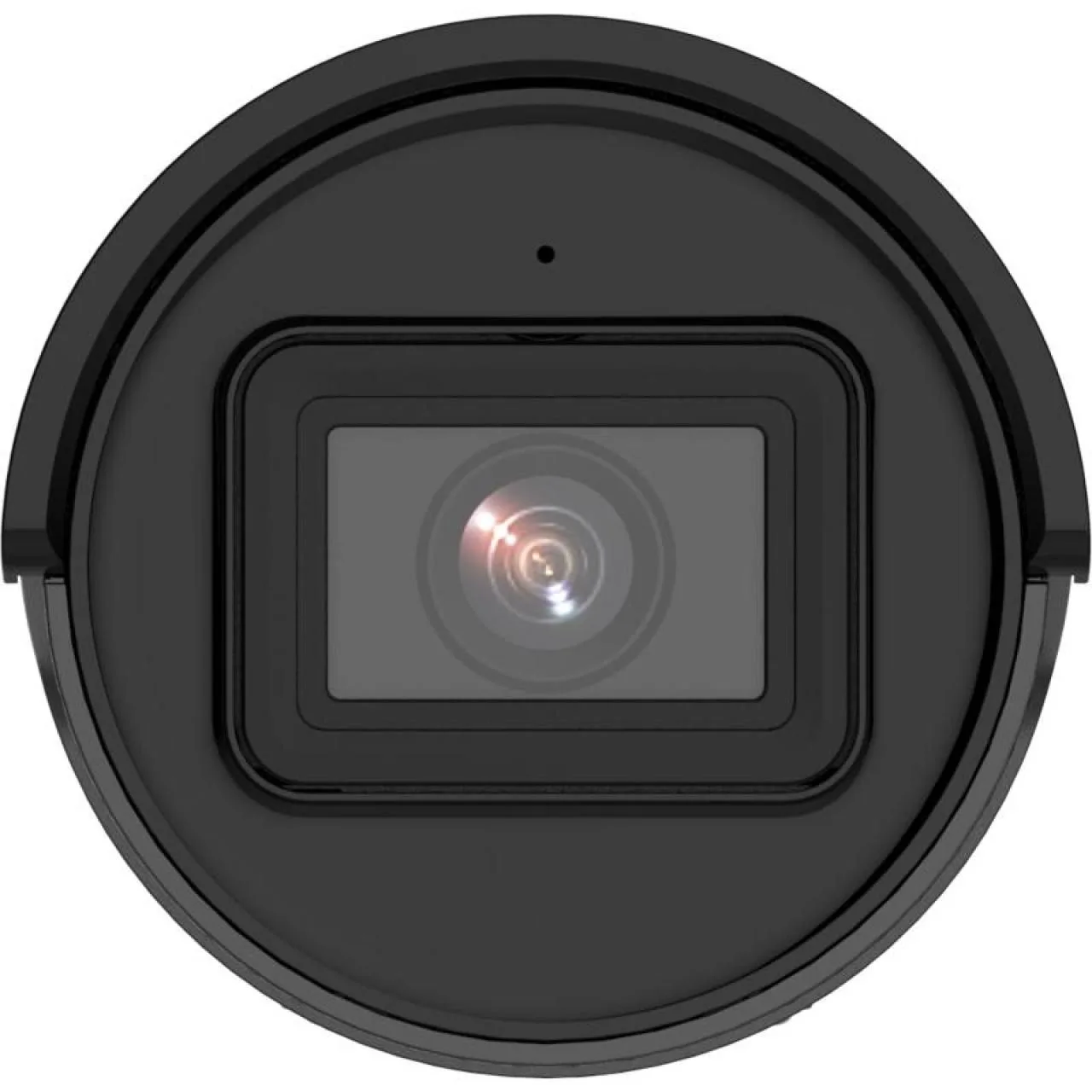

4 MP AcuSense Fixed Bullet Network Camera — image 1

DS-2CD2043G2-IU-Black · Hikvision

Telecamera di rete bullet fissa AcuSense 4 MP

Immagini di alta qualità con risoluzione 4 MP
Immagini nitide in controluce grazie alla tecnologia WDR 120 dB
Efficiente tecnologia di compressione H.265+
-U: Microfono integrato per la sicurezza audio in tempo reale
Resistente all'acqua e alla polvere (IP67)
Classificazione di bersagli umani e veicoli basata sul deep learning

0,00 €

IVA inclusa · Spedizione calcolata al checkout

Esaurito· Spedito da Milano in 1-2 giorni

Spedizione UE gratuita sopra €100

Garanzia 24 mesi inclusa

Reso gratuito entro 30 giorni

Immagini di alta qualità con risoluzione 4 MP
Immagini nitide in controluce grazie alla tecnologia WDR 120 dB
Efficiente tecnologia di compressione H.265+
-U: Microfono integrato per la sicurezza audio in tempo reale
Resistente all'acqua e alla polvere (IP67)
Classificazione di bersagli umani e veicoli basata sul deep learning

Ogni unità è testata sul banco prima della spedizione: alimentazione PoE, qualità immagine, integrità dello chassis, conformità IP. Forniamo manuali in italiano e inglese, supporto telefonico in orario d’ufficio e supporto remoto su appuntamento.

Compatibile con i principali sistemi VMS (Milestone, Genetec, Hikvision iVMS).
Conforme NDAA per installazioni in enti pubblici.
Aggiornamento firmware OTA gratuito per 5 anni.

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Camera

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount: M12
Aperture: F1.6
Iris Type: Fixed
Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount: M12
Aperture: F1.6
Iris Type: Fixed
Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount: M12
Aperture: F1.6
Iris Type: Fixed

DORI

DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m
DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m
DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m

Illuminator

Supplement Light Range: Up to 40 m
Supplement Light Type: IR
IR Wavelength: 850 nm
Smart Supplement Light: Yes
Supplement Light Range: Up to 40 m
Supplement Light Type: IR
IR Wavelength: 850 nm
Smart Supplement Light: Yes
Supplement Light Range: Up to 40 m
Supplement Light Type: IR
IR Wavelength: 850 nm
Smart Supplement Light: Yes

Video

Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes
Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC)
Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: -U: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone: -U: Yes
Reset Key: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone: -U: Yes
Reset Key: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone: -U: Yes
Reset Key: Yes

Event

Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)
Face detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture

General

Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W

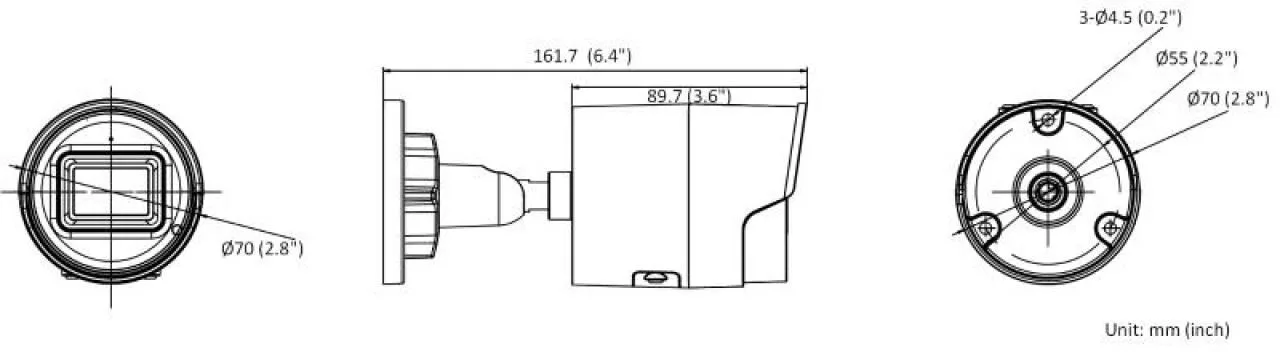

Dimension: Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Dimension: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
With Package Weight: Approx. 724 g (1.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Dimension: Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Dimension: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
With Package Weight: Approx. 724 g (1.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W
Dimension: Ø70 × 161.7 mm (Ø2.76″ × 6.37″)
Package Dimension: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
With Package Weight: Approx. 724 g (1.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language: 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)

Generale

SKU: DS-2CD2043G2-IU-Black
Marchio: Hikvision

Documenti Tecnici

Scarica la documentazione ufficiale per installazione, configurazione e consultazione.
