- Power
- -LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W,
-LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W - Material
- Cover: Plastic, main body: Metal

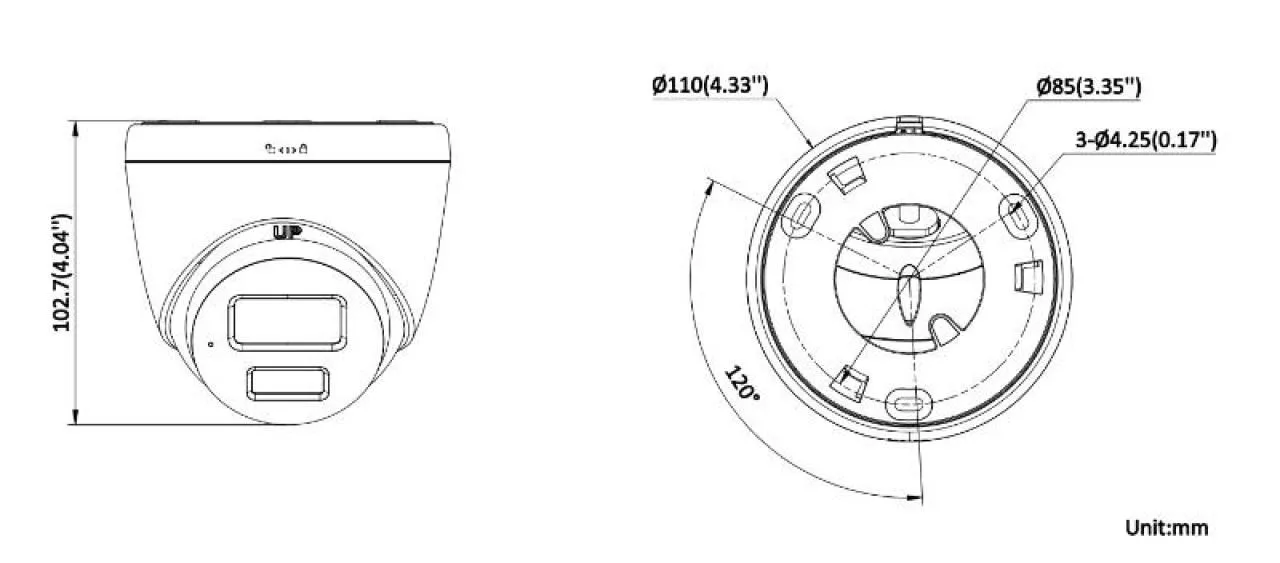

- Dimension
- Ø110 mm × 102.7 mm (Ø4.33" × 4.04")
- Package Dimension
- 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- With Package Weight
- -LIU: Approx. 550g (1.2 lb.)
-LIUF: Approx. 575g (1.3 lb.)
-LIU/S(L)(RB): Approx. 590g (1.3 lb.)
-LIUF/S(L)(RB): Approx. 600g (1.3 lb.) - Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
- -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function
- Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light
- -LIU、-LIUF：NA
-LIU(F)/SL：White Light
-LIU(F)/SRB：Red and Blue Light - Power
