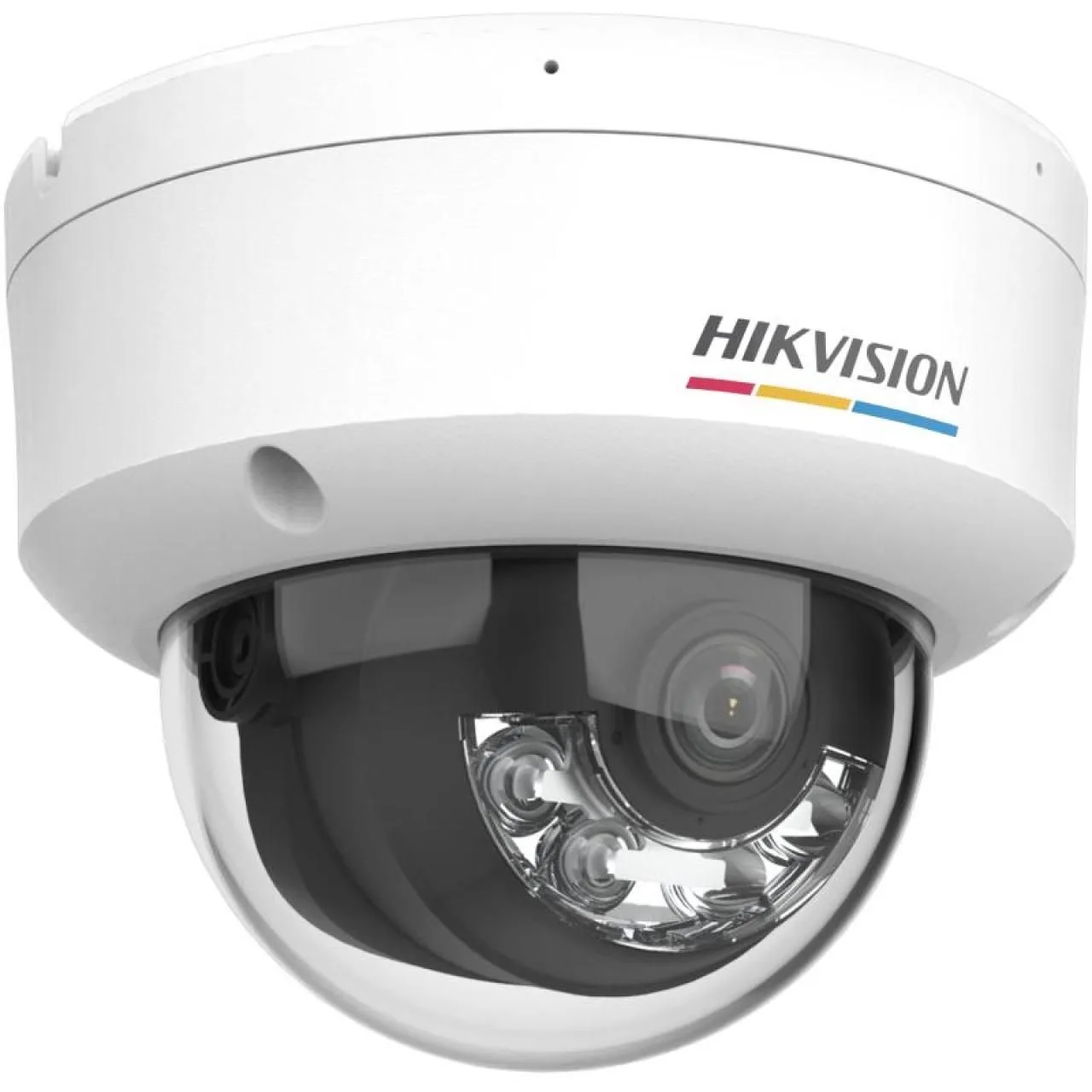

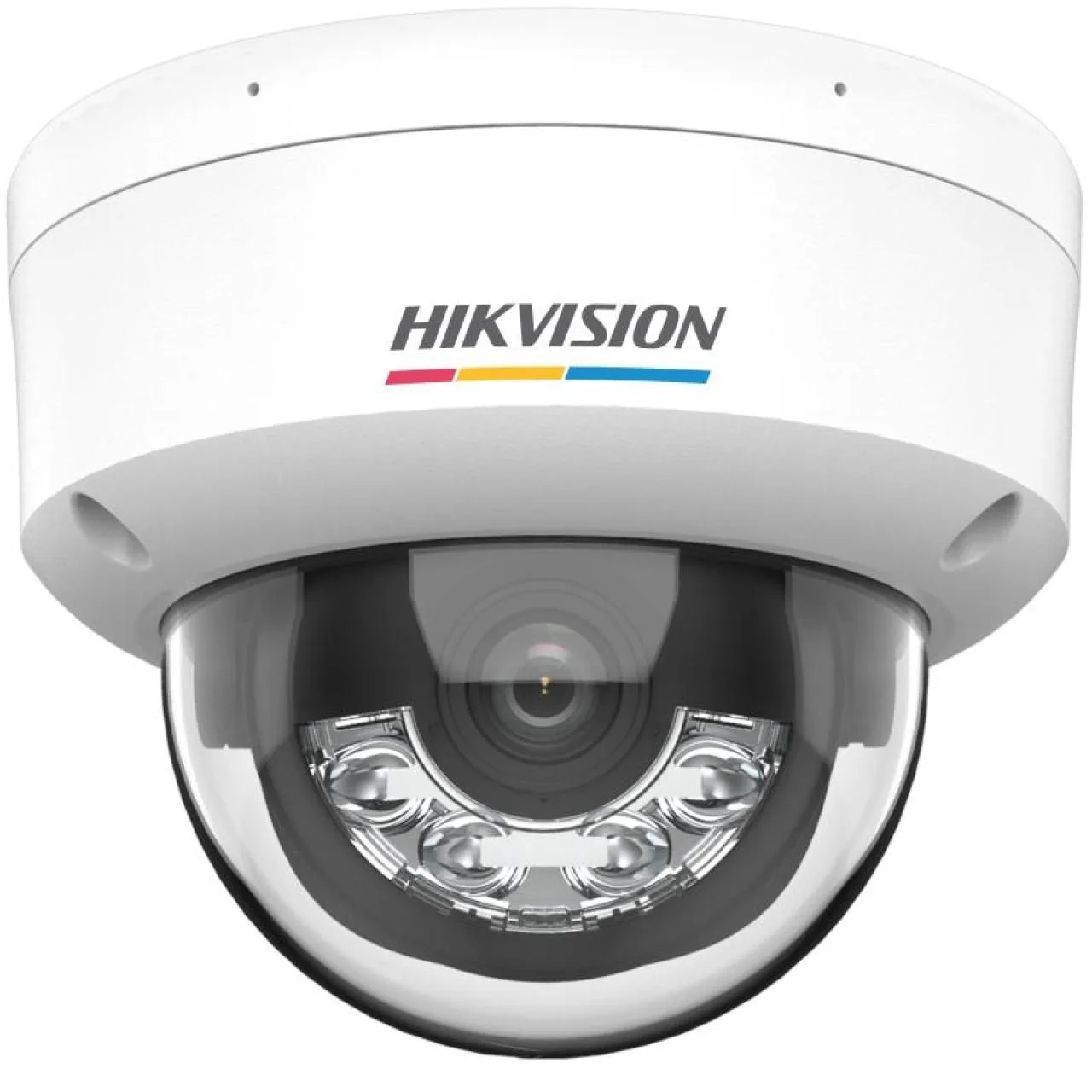

4 MP ColorVu with Smart Hybrid Light Fixed Dome Network Camera — image 1

DS-2CD1147G2H-LIUF · Hikvision

Telecamera di rete dome fissa 4 MP ColorVu con Smart Hybrid Light

Immagini di alta qualità con risoluzione 4 MP
Supporto rilevamento di persone e veicoli
Smart Hybrid Light: tecnologia avanzata con lunga portata
Efficiente tecnologia di compressione H.265+
Supporto archiviazione on-board fino a 512 GB (slot SD card) (Opzionale)
Microfono integrato per la sicurezza audio in tempo reale
Resistente all'acqua e alla polvere (IP67) e agli atti vandalici (IK08)

0,00 €

IVA inclusa · Spedizione calcolata al checkout

Esaurito· Spedito da Milano in 1-2 giorni

Spedizione UE gratuita sopra €100

Garanzia 24 mesi inclusa

Reso gratuito entro 30 giorni

Immagini di alta qualità con risoluzione 4 MP
Supporto rilevamento di persone e veicoli
Smart Hybrid Light: tecnologia avanzata con lunga portata
Efficiente tecnologia di compressione H.265+
Supporto archiviazione on-board fino a 512 GB (slot SD card) (Opzionale)
Microfono integrato per la sicurezza audio in tempo reale
Resistente all'acqua e alla polvere (IP67) e agli atti vandalici (IK08)

Ogni unità è testata sul banco prima della spedizione: alimentazione PoE, qualità immagine, integrità dello chassis, conformità IP. Forniamo manuali in italiano e inglese, supporto telefonico in orario d’ufficio e supporto remoto su appuntamento.

Compatibile con i principali sistemi VMS (Milestone, Genetec, Hikvision iVMS).
Conforme NDAA per installazioni in enti pubblici.
Aggiornamento firmware OTA gratuito per 5 anni.

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Camera

Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0

DORI

DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type: IR,White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video

Main Stream: 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream
Main Stream: 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream
Main Stream: 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host: Up to 32 users
3 user levels: administrator, operator, and user
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 4 programmable polygon privacy masks

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes,1 built-in microphone
Reset Key: -F: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes,1 built-in microphone
Reset Key: -F: Yes
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes,1 built-in microphone
Reset Key: -F: Yes

Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to memory card (-F model supports) , trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to memory card (-F model supports) , trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage: Upload to memory card (-F model supports) , trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture

General

Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Base: metal, cover: plastic

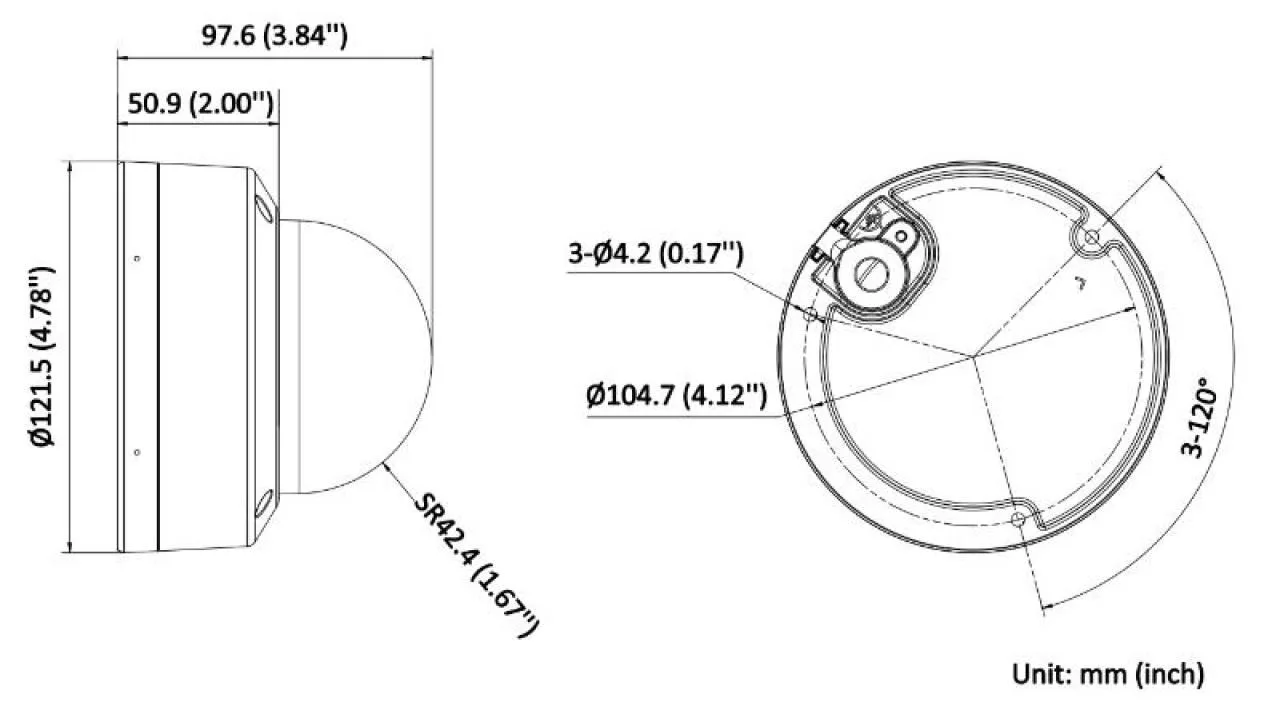

Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
With Package Weight: Approx. 800 g (1.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password reset via email,password protection
Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Base: metal, cover: plastic
Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
With Package Weight: Approx. 800 g (1.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password reset via email,password protection
Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Base: metal, cover: plastic
Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension: 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
With Package Weight: Approx. 800 g (1.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Heartbeat,anti-banding,mirror,password reset via email,password protection

Approval

EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002

Generale

SKU: DS-2CD1147G2H-LIUF
Marchio: Hikvision

Documenti Tecnici

Scarica la documentazione ufficiale per installazione, configurazione e consultazione.
