DS-2SF8C848MXG1-ELW-26 · Hikvision

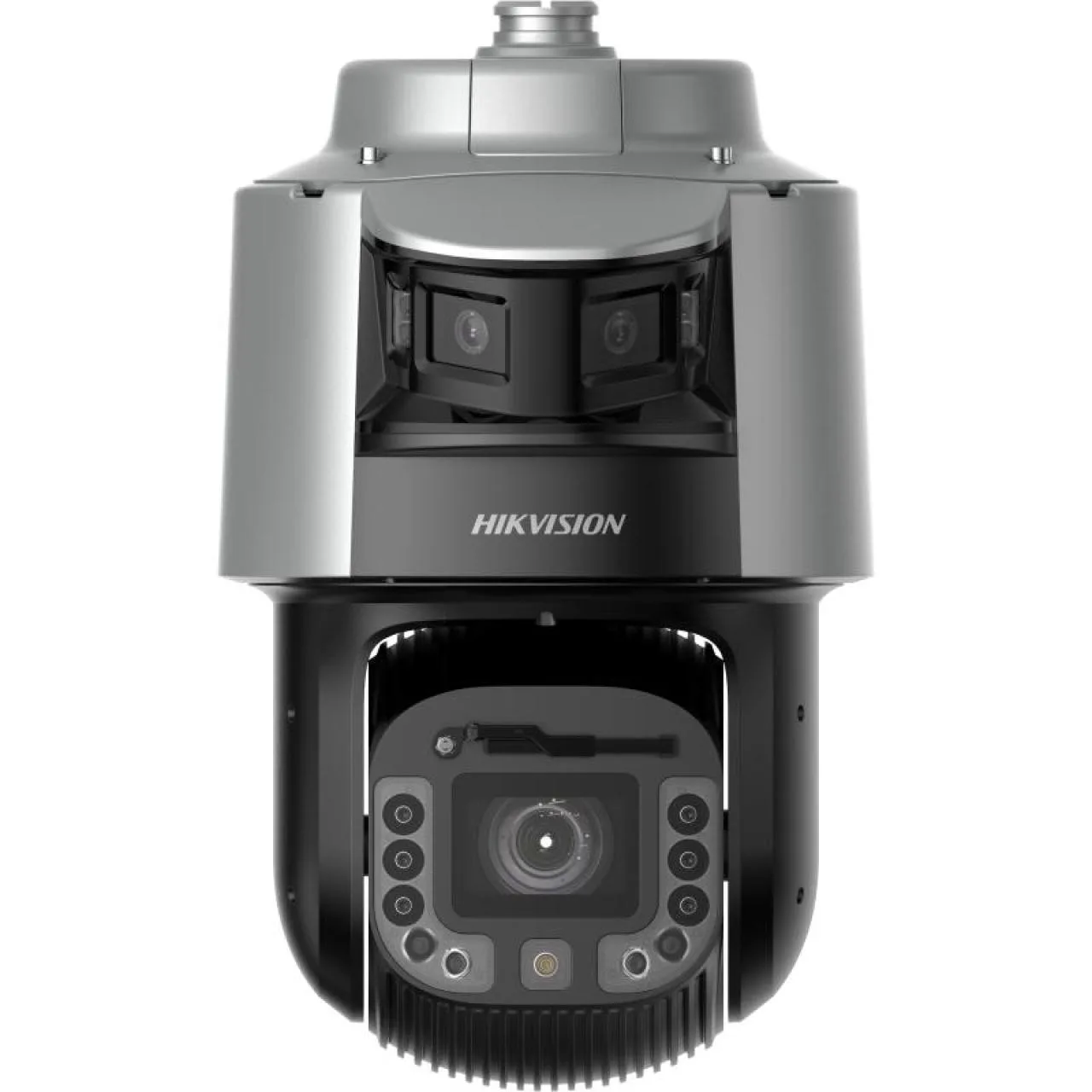

Hikvision TandemVu Serie 8C Speed Dome di rete panoramico 8 MP 48X DarkFighter

Cattura un'area estesa e ogni minimo dettaglio contemporaneamente
Immagini di alta qualità con risoluzione 6 MP per il canale bullet e 8 MP per il canale PTZ
Immagini a colori 24/7 e prestazioni eccellenti in condizioni di scarsa illuminazione con la tecnologia DarkFighter 2.0
Inclinazione del canale panoramico regolabile da 12° a 24°
Monitora un'area estesa con zoom ottico 48× e zoom digitale 16×
Ampia visione notturna con portata della luce bianca fino a 30 m e portata IR fino a 500 m
Supporta funzioni di deep learning
Resistente ad acqua e polvere (IP67) e agli atti vandalici (IK10), vetro escluso
Allarme audiovisivo: la luce bianca lampeggiante e l'avviso acustico possono essere attivati da determinati eventi

7.345,52 €

14.126,00 €

Risparmi 6.780,48 €

IVA inclusa · Spedizione calcolata al checkout

Disponibile su ordine· Consegna in 7–14 giorni lavorativi

Spedizione UE 7–14 giorni

Garanzia 24 mesi

Reso 14 giorni

Scheda tecnica

Specifiche

Tutti i parametri della telecamera, raggruppati per area funzionale. Scorri per esplorare ogni sezione.

Camera

Image Sensor: [Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.2" Progressive Scan CMOS
Shutter Speed: 1 s to 1/30000 s
Slow Shutter: Yes
Day & Night: [Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom: [PTZ channel] 48 × optical, 16 × digital
Max. Resolution: [Panoramic channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

FOV: [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
Focus: Auto,semi-auto,manual
Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
Focal Length: [Panoramic channel] 4 mm, [PTZ channel] 6.25 to 300 mm
Aperture: [Panoramic channel] F1.0, [PTZ channel] F1.6

Illuminator

Supplement Light Range: [Bullet channel] white light: up to 30 m, [PTZ channel] Laser: up to 500 m
Smart Supplement Light: Yes

PTZ

Movement Range (Pan): 360° endless
Movement Range (Tilt): [Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
Proportional Pan: [Panoramic channel] No, [PTZ channel] Yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Yes
Park Action: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning: Yes
PTZ Status Display: Yes
Preset Freezing: Yes
Scheduled Task: Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video

Sub-Stream: [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432)
Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline profile,Main profile,High profile
H.265 Type: Main profile
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 8 fixed regions for each stream

Audio

Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),8-48 Kbps (PCM),64 Kbps (G.711),16 Kbps (G.726)
Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering: Yes

Network

API: ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
Network Storage: NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols: IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Security: Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark, TPM 2.0 (FIPS 140-2 level 2)
Client: iVMS-4200,HikCentral Pro,Hik-Connect


Wide Dynamic Range (WDR): [Bullet channel] 120 dB, [PTZ channel] 140 dB
Day/Night Switch: Day,night,auto,schedule
Image Enhancement: HLC,3D DNR
Privacy Mask: [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Defog: Optical defog
Image Stabilization: OIS
Regional Exposure: Yes
Regional Focus: [Panoramic channel] No, [PTZ channel] Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch: Yes
SNR: ≥ 52 dB

Supplement Detection

Satellite Positioning: No
Gyroscope: Yes
Compass: No

Interface

On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
Built-in Speaker: 1 built-in speaker
Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port
Alarm: 7 input(s), 2 output(s)
RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset: Yes

Event

Basic Event: [PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
Linkage: [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection

Linkage and Tracking

Smart Tracking: Manual tracking, auto-tracking 3.0
Smart Linkage: Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General

General Function: mirror,password protection
Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper: Yes
Demist: Yes
Material: ADC12
Dimension: Ø290 mm × 453.2 mm (Ø11.42" × 17.84")
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Safety: CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)

Generale

Dimensioni: Ø290 mm × 453.2 mm
SKU: DS-2SF8C848MXG1-ELW-26
Marchio: Hikvision
